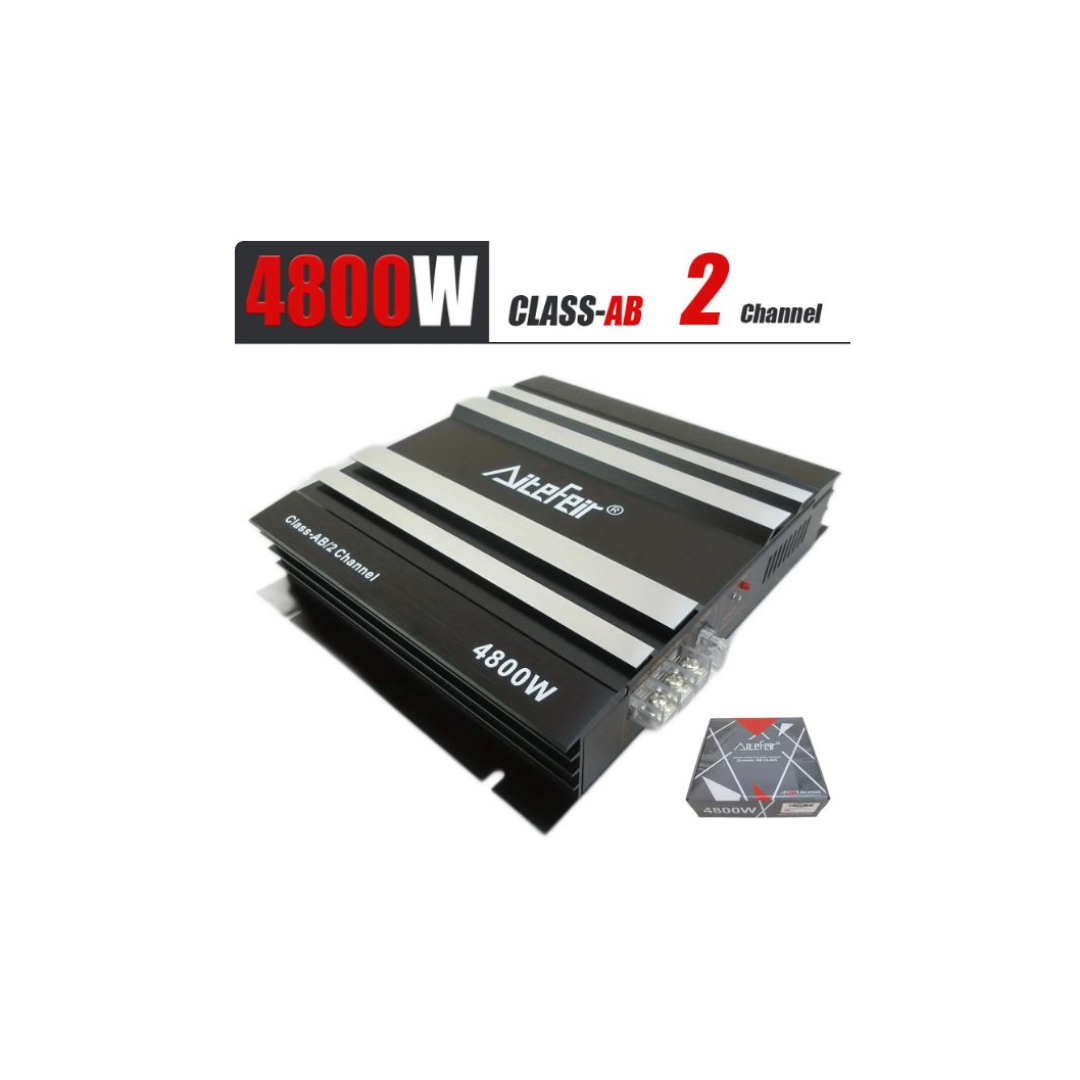

4800W 2 Channel Class Ab Stereo 12V AMPLIFIER

2 channels for speaker audio:

AT-4800 is a 2-channel stereo power amplifier with bass adjustment and enhancement functions, not only for speakers, but also for subwoofers. It meets the needs of most users and has a wide range of application scenarios. Having it will give you a more robust vocal experience.

Class AB power amplifier:

Class AB power amplifiers combine the respective vents of Class A and Class B power amplifiers. Among car audio amplifiers, Class AB power amplifiers are the most cost-effective power amplifiers.

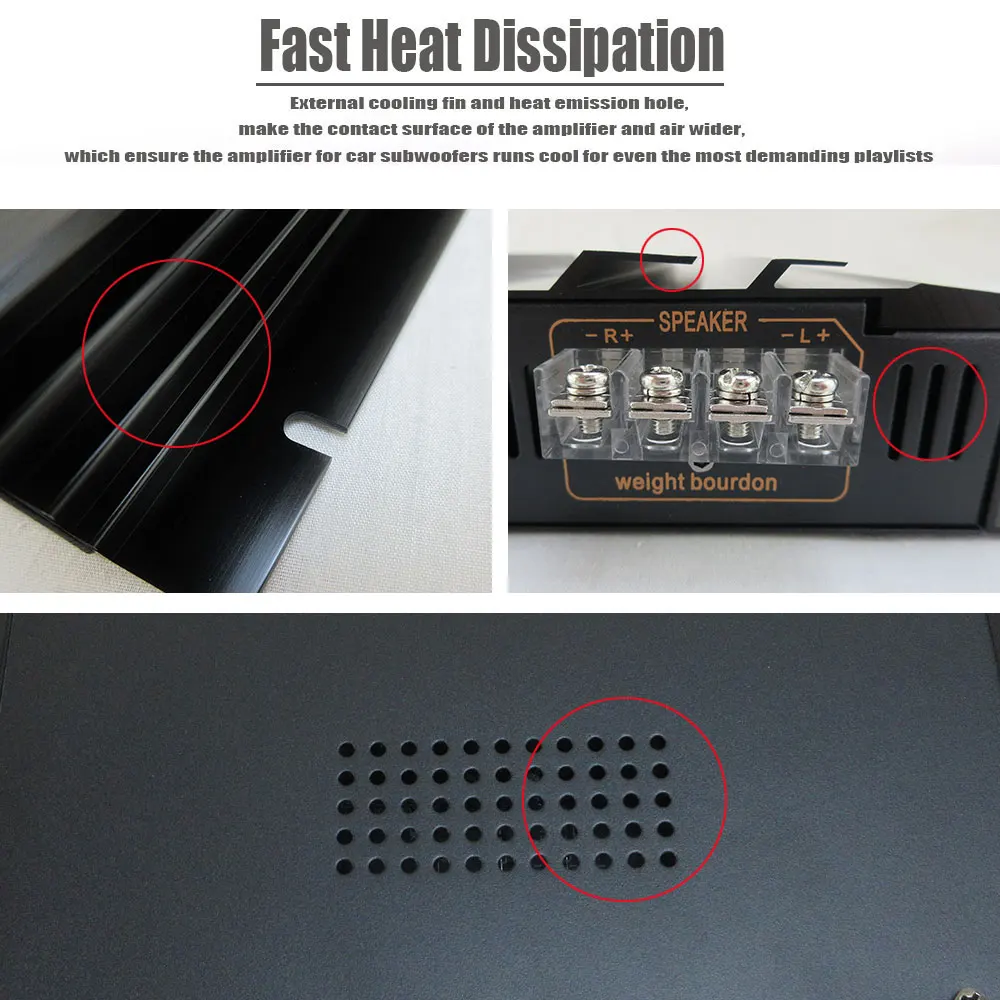

Fast heat dissipation:

The external cooling fin and heat emission hole make the contact surface of the amplifier and the air wider, ensuring the car amplifier cools down even for the most demanding playlists.

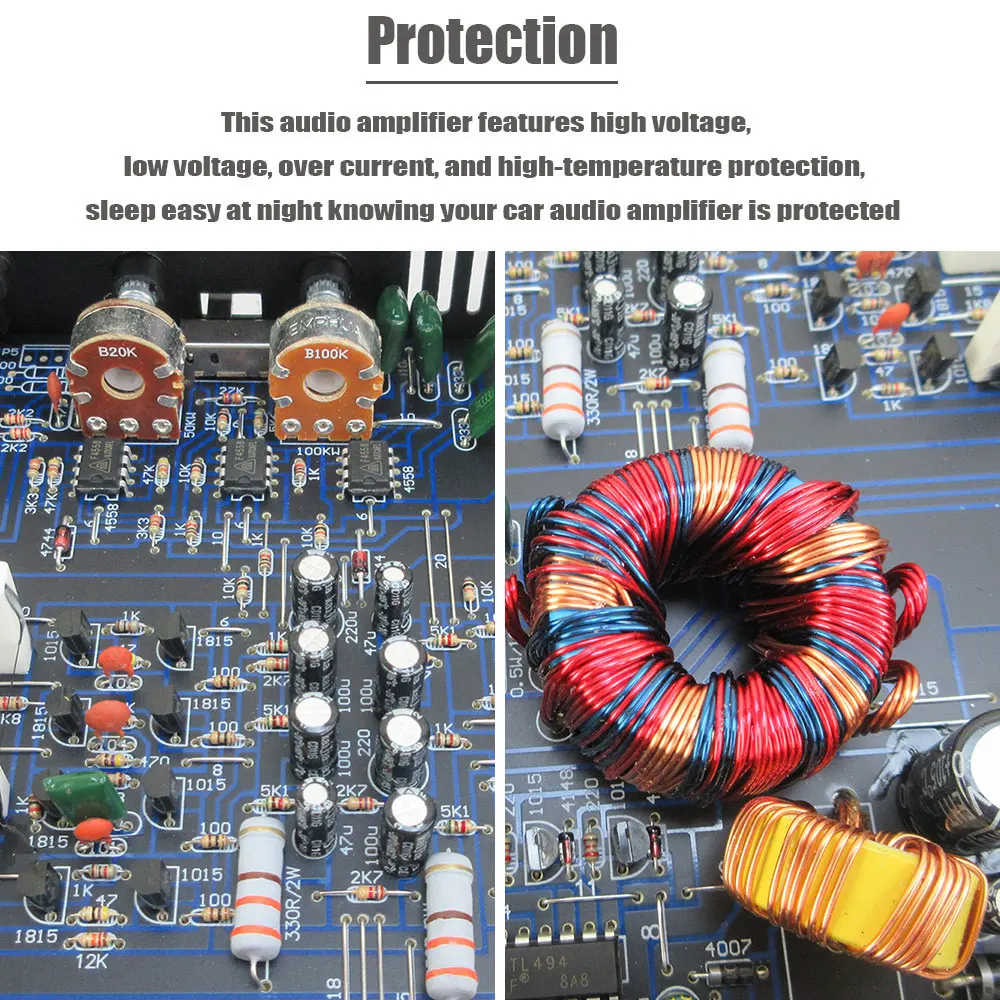

Protection:

This audio amplifier features high voltage, low voltage, overcurrent and high temperature protection; Sleep peacefully at night knowing your car audio amplifier is protected. External cooling and heat emission hole make the amplifier contact surface and area wider, heat dissipation faster. 4800W strong power and has clear and high fidelity sound quality.





Specifications:

Material: Aluminum alloy

Amplifier type: class AB

Number of channels: 2

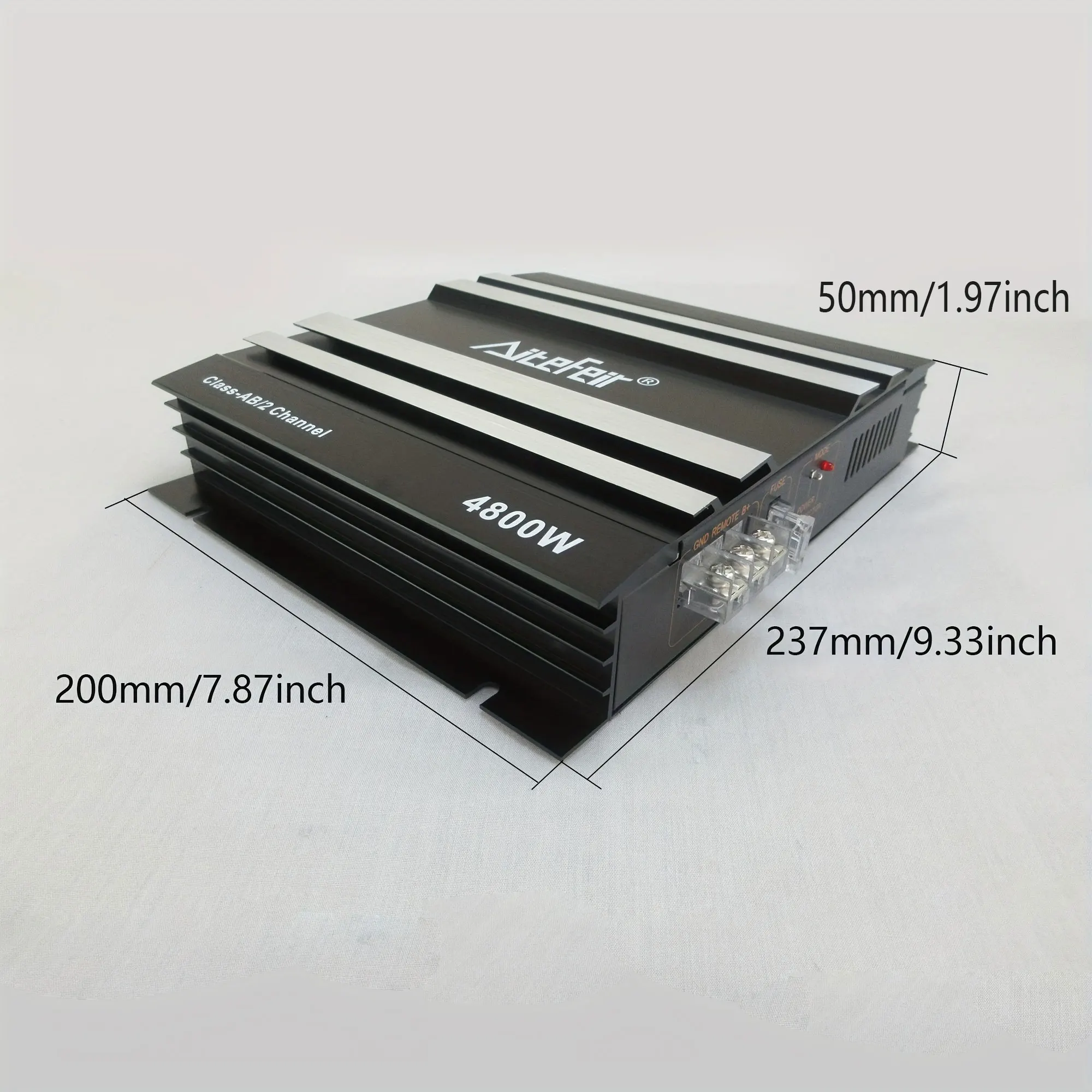

Product size: 237mm*200mm*50mm

Product weight: 1.5kg

Maximum power (2ohm) 2400W * 2 = 4800W

Maximum power (4ohm) 1200W * 2 = 2400W

RMS power (2 ohms) 640W * 2 = 1280W

RMS power (4 ohms) = 320W * 2 = 640W

Total harmonic distortion: <0.01%

SNR: 90dB

Sensitivity: 300mv-6V

Frequency response: 20Hz 20KHz

High Pass Frequency: 120-3KHZ

Low Pass Frequency: 50-250HZ

Overload protection: yes

High/Low Pass Filter Adjustment: Yes

Front/rear sound field mode adjustment: yes

Working voltage: 12V

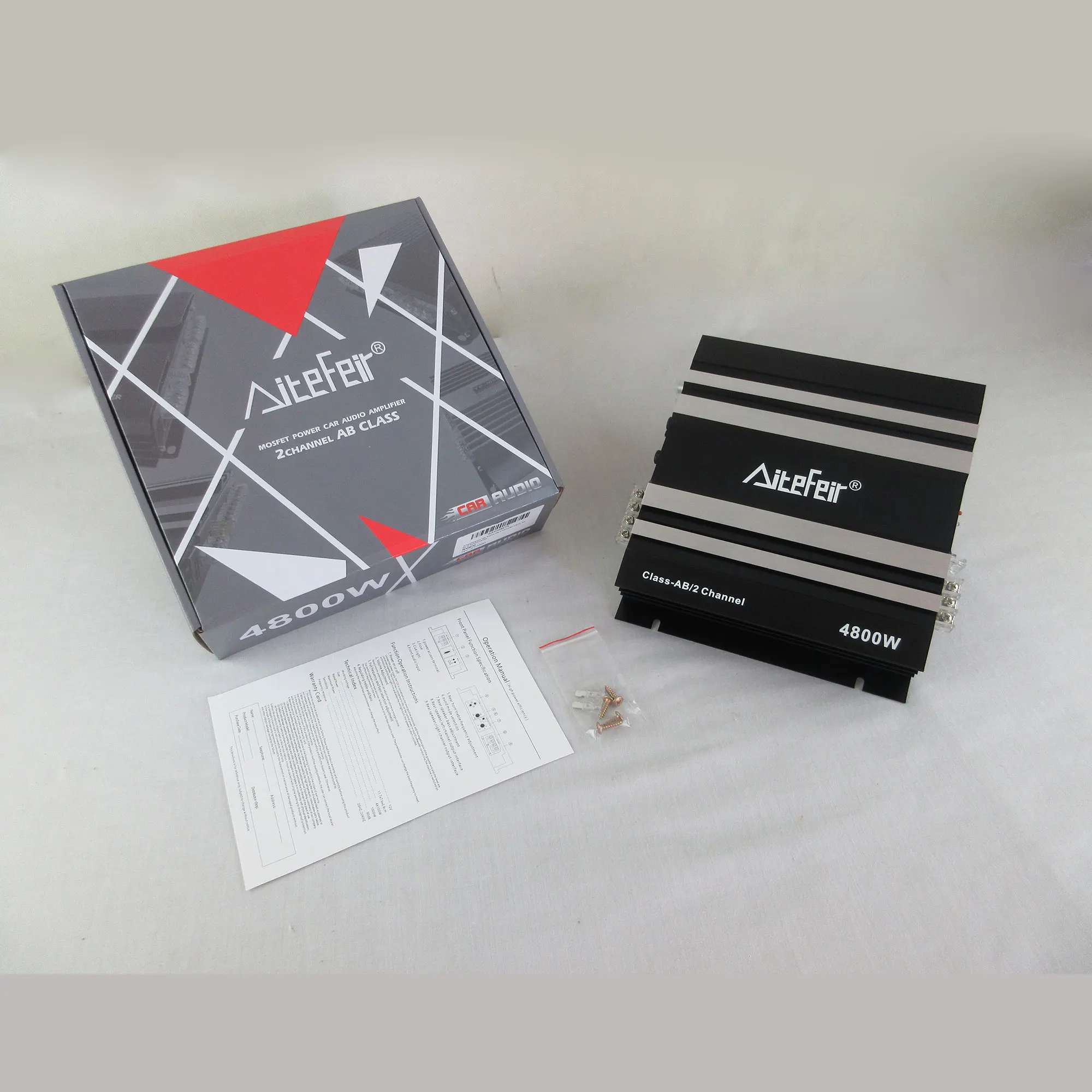

Package Included:

1 X 2 Way Class AB Car Audio Amplifier

1 X Terminal and Screw Kit

1 X manual
