Description
BILGE PUMP CONTROL PANEL

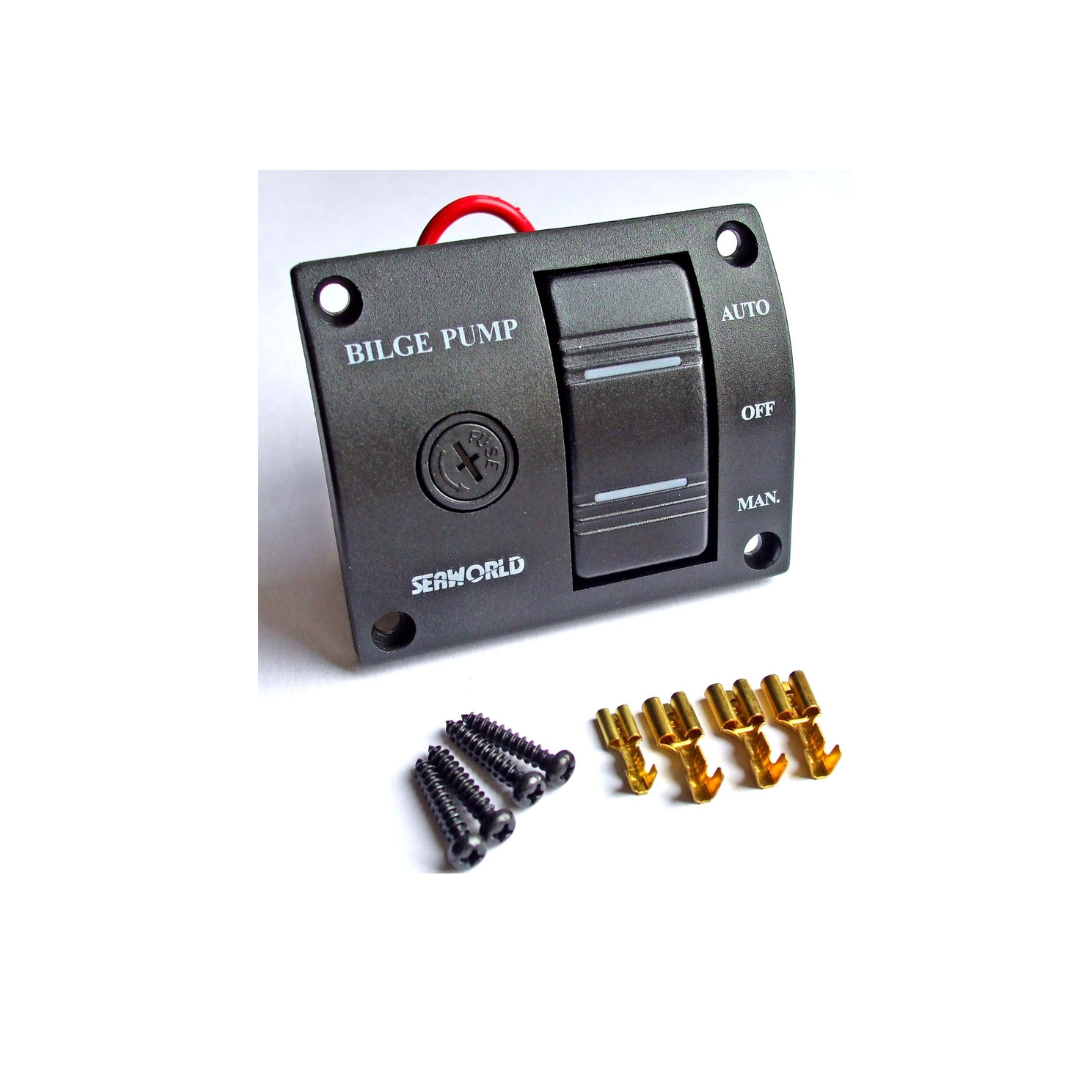

SEAWORLD BILGE PUMP SWITCH PANEL – 3 way ‘MANUAL – OFF – AUTO’ FUNCTION, with FUSE AND ILLUMINATION. 12volt
Pt.no. 10-10714
High quality bilge pump switch panel from this well known brand. This is a contemporary design of panel, in black plastic with a matt surface finish and contoured shape. White legending. The switch is 3 position ‘MAN-OFF-AUTO’ with a ‘double illuminated’ rocker moving vertically. The switch is spring return to off from ‘manual’ so the pump cannot be left on by accident. The ‘auto’ position is wired via a float switch (not included) to give automatic pump operation when the boat is unattended. The LED’s in the rocker illuminate separately depending which way the switch is set.
4 fixing holes. This version includes a panel mounted fuseholder.
Suitable for 12v use ONLY because of the LED’s.
Supplied with 4 screws and wiring crimp terminals, and a 5A glass fuse fitted. Installation instructions and wiring diagram included.
Size 74wide x 62 high.
Boxed weight 90gms
