Description

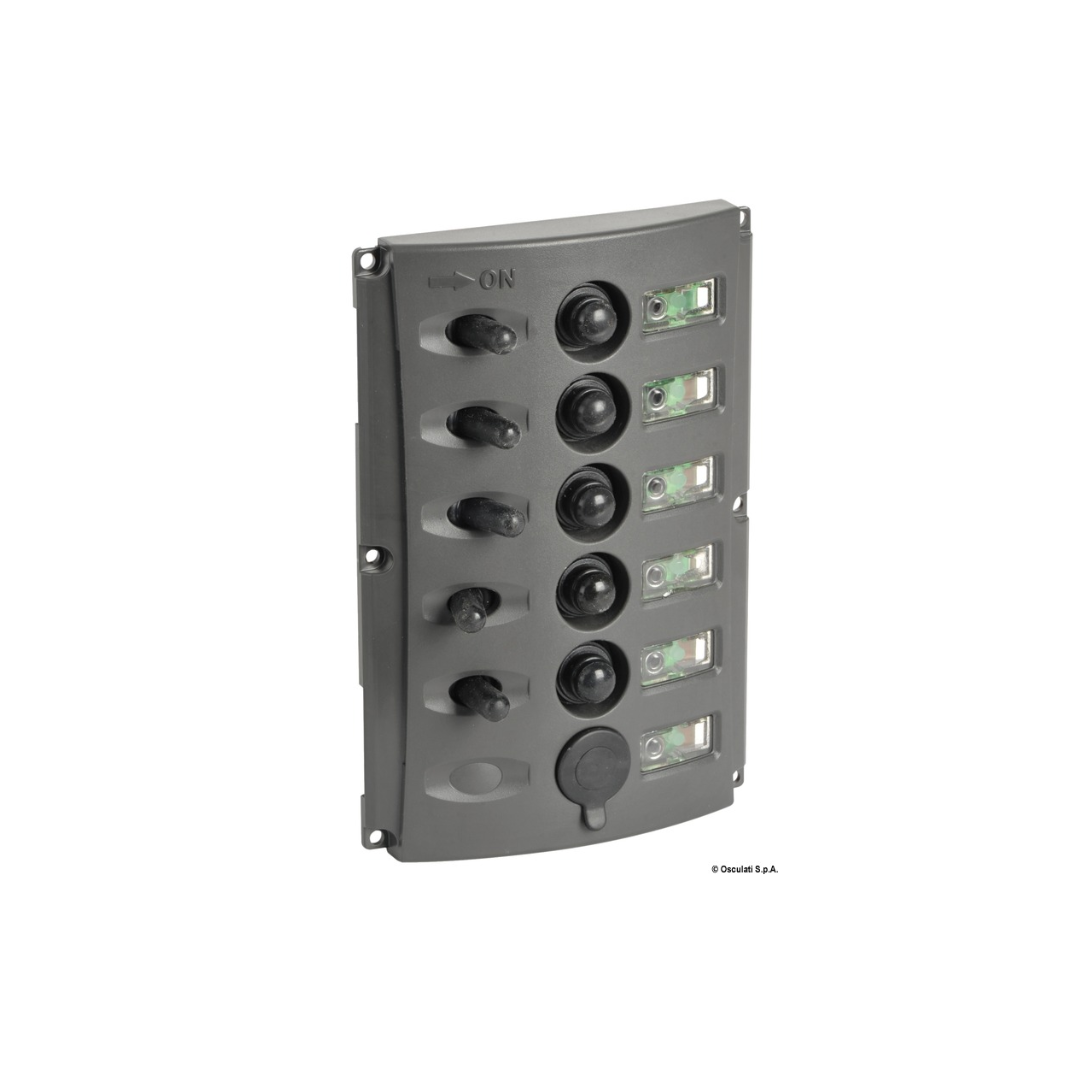

Electric panel w/automatic fuses and double LED
The Electric panel w/automatic fuses and double LED is designed for reliable and efficient operation on boats and yachts. Made from durable dark grey polycarbonate, it offers both functionality and sleek design for marine environments. Equipped with automatic fuses, green and red LED indicators, and hidden mounting screws, this panel ensures easy monitoring and long-lasting performance.
Key Features
- Durable Marine-Grade Body: Built from dark grey polycarbonate, the panel is tough, lightweight, and resistant to marine conditions like moisture and UV exposure.
- Double LED Indicators:
- Steady Green LED: Lights up the labels to indicate the function in use.
- Red LED: Switches on when the circuit is in the ON position, offering clear status visibility.
- Automatic Fuses: Designed with resettable fuses to protect circuits and eliminate the need for manual replacements.
- Hidden Mounting Screws: Provides a clean, seamless look for a professional installation.
- Specialized Switches:
- First ON-OFF-ON Switch: Includes 2 separate circuits.
- ON-OFF Return Switch: Available in models 14.850.05 and 14.850.06.
Available Models
14.850.06
- Voltage: 12V
- No. of Switches: 6
- Automatic Fuses: 3×10 A + 3×5 A
- Max Total Amp: 37
- Dimensions: 165 x 115 mm
14.850.05
- Voltage: 12V
- No. of Switches: 5 + USB (watertight)
- Automatic Fuses: 2×10 A + 3×5 A
- Max Total Amp: 37
- Dimensions: 165 x 115 mm
14.850.04
- Voltage: 12V
- No. of Switches: 4
- Automatic Fuses: 2×10 A + 2×5 A
- Max Total Amp: 37
- Dimensions: 124 x 115 mm
Why Choose This Electric Panel?
- Reliable Circuit Protection: The automatic fuses ensure circuits are protected against overloads without requiring replacements.
- Clear LED Indicators: The green LED illuminates the labels for easy identification, while the red LED confirms the switch is in the ON position.
- Easy Installation: With hidden mounting screws, the panel offers a clean and professional finish.
- Versatile Functionality: Includes specialized switches for models 14.850.05 and 14.850.06, offering added flexibility for marine applications.
- Compact Design: The compact and lightweight design makes it easy to fit into tight spaces on boats and yachts.
Specifications
- Material: Dark grey polycarbonate
- LED Indicators: Green (function labels), Red (ON position)
- Automatic Fuses: Resettable (varied by model)
- Voltage: 12V
- Switch Types: ON-OFF-ON and ON-OFF return options (specific models)
- Mounting: Hidden screws for clean installation
- Applications: Ideal for boats, yachts, and other marine systems
Summary
The Electric Panel with Automatic Fuses and Double LED provides efficient circuit protection and clear status monitoring for marine vessels. Its marine-grade polycarbonate body, LED indicators, and automatic fuses make it a durable and practical solution for boats and yachts. With multiple models available, it ensures versatility and ease of installation, making it an essential addition to your onboard electrical systems.
