Description

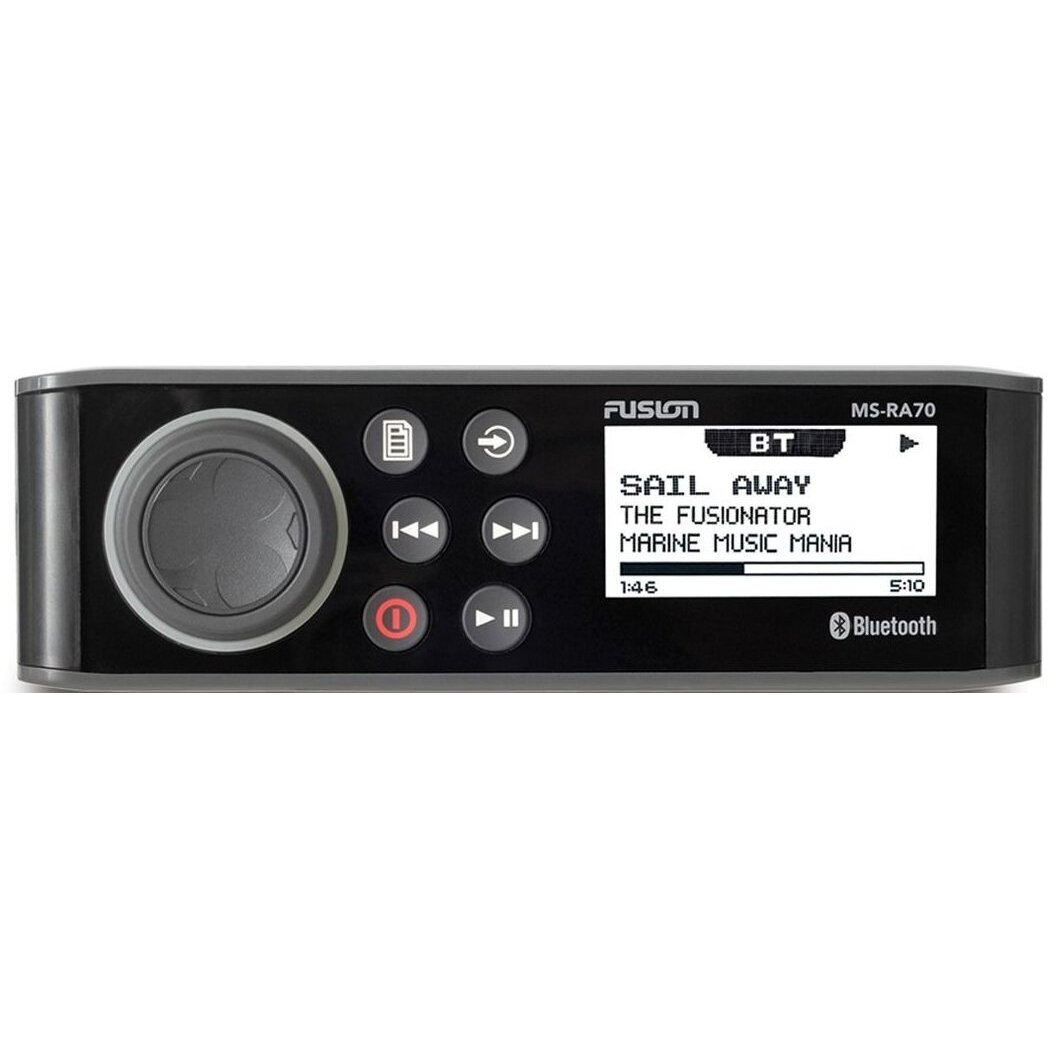

RA70N Fusion Radios Entertainment System: The Industry Benchmark for Marine Entertainment
Upgrade your boat’s audio system with the RA70N Fusion Radios Entertainment System. Part of the RA70 Series, which includes the MS-RA70 and MS-RA70N models, this marine stereo provides unparalleled performance and installation ease. With multiple control options and a variety of audio sources, it’s designed to withstand marine environments while delivering outstanding sound quality.
Key Features of the FUSION RA70N ENTERTAINMENT SYSTEM
- Seamless Installation: Retrofit your existing DIN-sized cutout without the need for reconfiguring your dash space.
- Enhanced Screen Visibility: The optically bonded 2.6″ monochrome LCD display improves screen visibility in various lighting conditions.
- Efficient Audio Performance: Equipped with a Class-AB amplifier for reduced distortion and more efficient audio output.
- Multi-Zone™ Technology: Control two separate audio zones, giving you flexibility in how you manage your boat’s audio.
- Wireless Control: Control your music via a compatible multifunction display (MFD), smart device, or Garmin watch.
General Specifications
- Dimensions: 7.4″ x 2.36″ x 4.87″ (188 x 60 x 123.5 mm)
- Weight: 1.23 lbs (556 g)
- Water Rating: IPX7 (front panel only when properly installed)
- Display: 2.6″ optically bonded monochrome LCD
- Operating Temperature: 32° to 122° F (0° to 50° C)
- Current (Max): 15 A
- Power Input: 10.8 – 16 VDC
- Compass-Safe Distance: 5.9″ (150 mm)
Audio & Networking Features
- Amplifier: Class-AB (4 ohm)
- Peak Power: 200 W
- Rated Power Output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD
- Bluetooth® Wireless Technology: Up to 30 ft range
- ANT® Wireless Technology: Up to 10 ft range
- Networking: NMEA 2000® LEN (see additional)
- SiriusXM-Ready: MS-RA70NSX only (U.S. only, requires optional SiriusXM Connect vehicle tuner)
- DAB+ Ready: MS-RA70 and MS-RA70N (Europe and Australia only)
Source & Connection Options
- Supported Sources: AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX x1, AOA
- Auxiliary Inputs (RCA): 1
- NMEA 2000® Ports: 1 (MS-RA70N and MS-RA70NSX only)
- USB 2.0 Ports: 1
- SiriusXM Ports: 1 (MS-RA70NSX only)
- Speaker Connections: 4 (2-zone amplified)
- RCA Pre-Out (Left, Right, and Subwoofer): 2 zones (requires external amplification)
- Subwoofer Out: Zone 1 (mono output, requires external amplification)
Additional Features
- Fusion-Link™ Control: Available for MS-RA70 (smart device and Garmin watch), MS-RA70N and MS-RA70NSX (MFD, smart device, and Garmin watch)
- Multi-Language Interface: Dutch, English, French, German, Italian, Spanish
- Software Updates: USB
- Warranty: 1 year
Conclusion
The FUSION RA70N ENTERTAINMENT SYSTEM delivers high-quality sound, seamless connectivity, and exceptional durability for marine environments. With its compact design, efficient performance, and multi-zone control, it’s the perfect audio solution for boat owners who demand the best in onboard entertainment.
