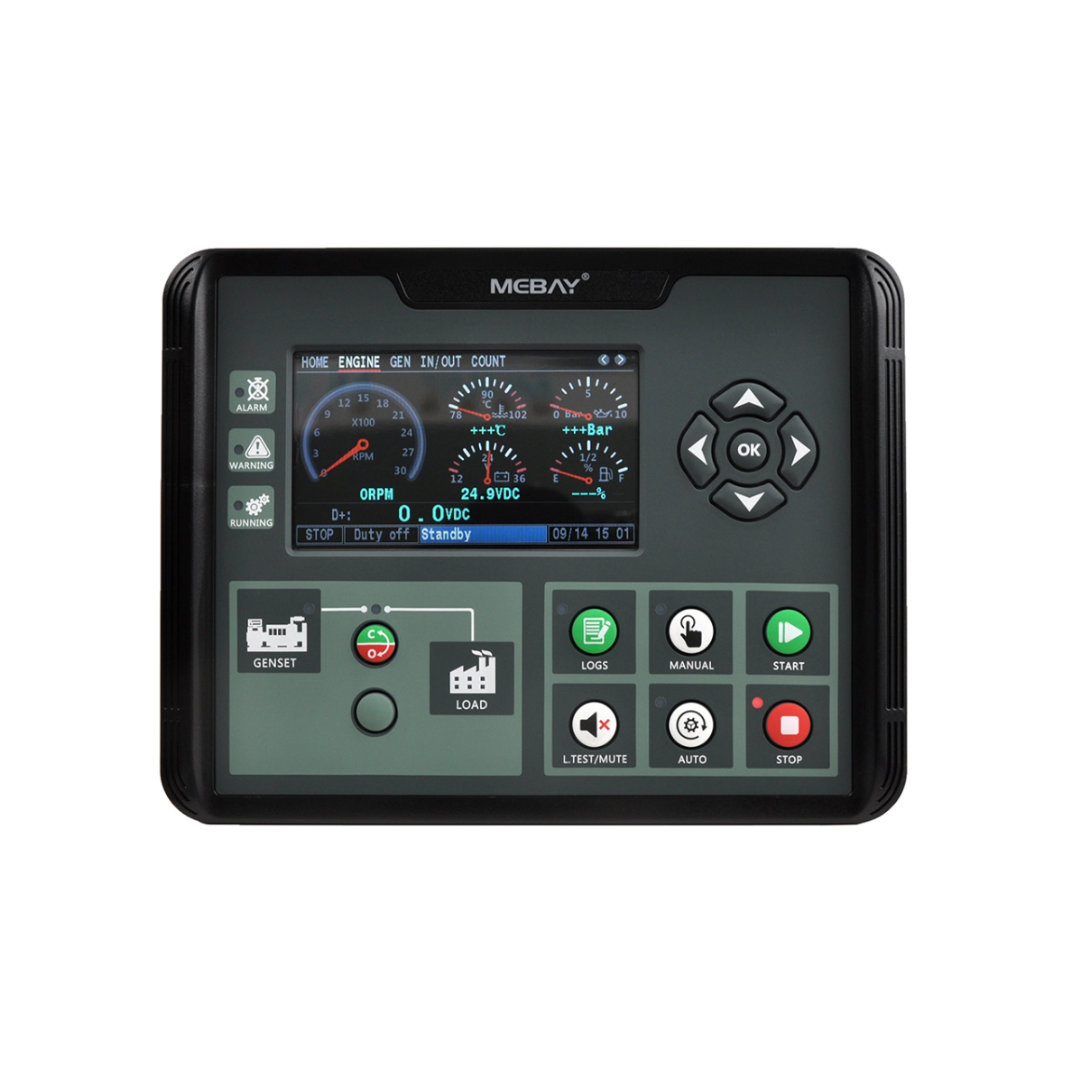

Mebay Auto Start Generator Controller DC60d

DC60D controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.

4.3 inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly.

There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC.It can be widely applied for all kinds of auto control system of gensets.

Options Parameters

Working voltage: DC8V—-36V Continuous

Power consumption Standby:  24V:MAX 1W Working:24V:MAX 5W

Rotate speed sensor Frequency : 200-10000Hz

MAX Accumulating Time: 99999.9Hours(Min Store time:6min)

Fuel Relay Output: 16Amp DC+VE Supply voltage

Start Relay Output : 16Amp DC+VE Supply voltage

Programmable Relay output : 1 5Amp DC+VE Supply voltage, Programmable Relay output: 2 5AMP Non-contact-Normal open–Normal close output, Programmable Relay output : 3 5AMP Non-contact Normal Open output and Programmable Relay output : 4 5AMP Non-contact normal open output

Excitation output Max: 1AMP DC+VE supply voltage

Working condition : -20-65ºC

Storage condition: -40-85ºC

Protection Level IP54: when waterproof rubber gasket is added between controller and its panel

Overall dimension : 210mm*160mm*50mm

Panel cutout : 186mm*142mm

Weight: 0.9Kg
