Description

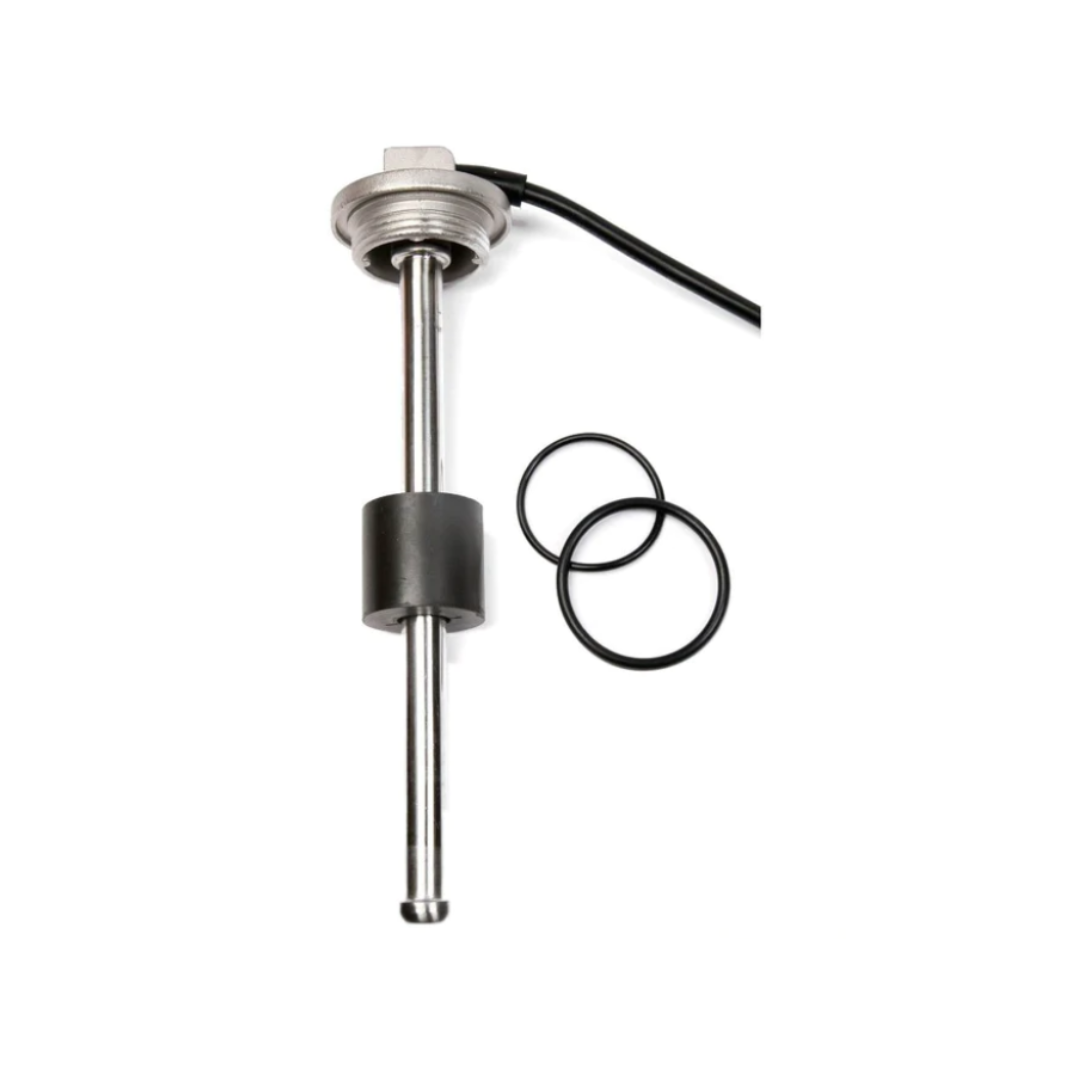

S3 Fuel and Water Sender
Specifications
- 316 stainless steel
- 1 ¼” BSP thread
- 0-190 ohms or 240-30 ohms
- IP67
- Simple to install and remove
- Very reliable
- Lengths from 150mm – 1600mm +
S3 Fuel and Water Sender Wiring Instructions
Simply connect one wire to earth and the other wire to the sensor cable on the gauge.
Torque Settings
Use these torque settings when screwing the S3 sender (with o’rings mounted) into a flange:
Steel Flange: 9 ± 1 Nm
Nylon Flange: 7 ± 1 Nm
