Description

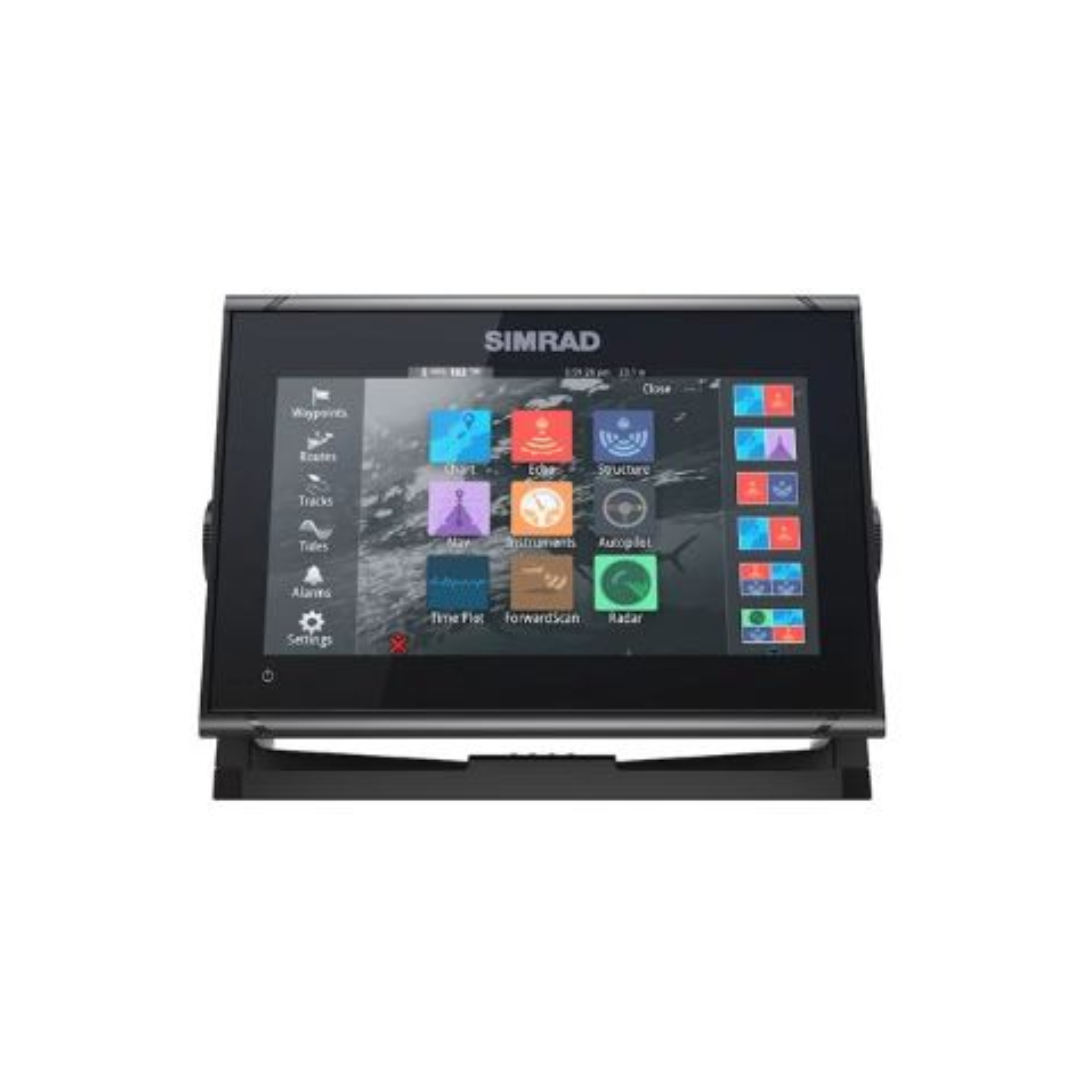

SIMRAD GO9 XSE NO XD
GO9 XSE: Advanced Multifunction Display for Your Boat
SKU: 000-14444-001
Upgrade your boating experience with the SIMRAD GO9 XSE NO XD, a powerful multifunction display that adds essential features like GPS navigation, sonar support, and radar capabilities. Perfect for sport boats, center consoles, and smaller cruisers, the GO9 XSE enables intuitive touchscreen control over various accessories, from autopilot systems to your onboard sound system. With wireless mirroring to smartphones and tablets, the GO9 XSE allows you to navigate effortlessly from anywhere on your boat.
Key Features of the SIMRAD GO9 XSE NO XD
Display Specifications:
- Backlight Color: White
- Resolution: 800×480
- Brightness: 1200 nits
- Viewing Angles: 80° top/bottom, 80° left/right
Physical Dimensions:
- Dimensions (W x H x D): 243 mm x 171 mm x 83 mm (9.56″ x 6.71″ x 3.26″) (no bracket)
- Mounting Type: Bracket or Panel
- Weight: 1.315 kg (2.9 lbs)
Electrical Performance:
- Max Power Consumption: 20 W
- Typical Power Consumption: 12 W
- Recommended Fuse Rating: 3A
- Supply Voltage: 10 – 17 V DC
Environmental Resilience:
- Operating Temperature: -15°C to +55°C (5°F to 131°F)
- Storage Temperature: -20°C to +60°C (4°F to 140°F)
- Waterproof Rating: IPX 6 and 7
Connectivity and Compatibility
Advanced Connectivity Options:
- Bluetooth: Internal
- Ethernet Ports: 1 x 5 pin yellow connector (Radar and Sirius (USA only) connectivity)
- Wi-Fi: Internal
- NMEA 2000: 1 x Micro-C port
Sonar Compatibility:
- Integrated CHIRP / DownScan / ForwardScan with a single 9 Pin Xsonic Connector
Waypoints, Routes, and Tracks:
- Supports up to 6000 waypoints, 500 routes with 100 max route points, and 50 tracks with 12,000 track points.
GPS Capabilities:
- Internal GPS receiver with 32 channels, providing a horizontal accuracy of 3 m (9.8 ft.) and a 10 Hz update rate.
The GO9 XSE is your ultimate solution for navigation and control on the water, blending advanced technology with user-friendly features for an exceptional boating experience. Choose the GO9 XSE to enhance your time on the water and enjoy the benefits of modern marine technology.
